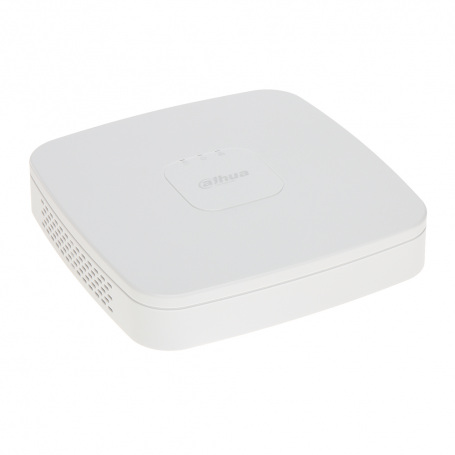

NVR NVR2108-4KS3 8 CHANNELS DAHUA

Standard:

TCP/IP

Supported resolutions:

max. 12Mpx- 4000 x 3000px

Video outputs:

1pcs HDMI 4K
1pcsVGA

Audio support:

• 8Channels - Audio from cameras

• Bi-directional audio streaming support

Audio inputs:

1pcsCINCH

Audio outputs:

1pcsCINCH

Image compression method:

Smart H.265+ /H.265/ Smart H.264+ /H.264/MJPEG

Bitrate:

max. 80Mbps

Supported hard drives:

1 x 20TBSATA

Recording modes:

Manual, Motion Detection, Schedule

External storage devices backup:

Backup to USB drive (pendrive, external drive)

Searching and playback the records:

• Records searching: by time and events type. Records playback: forward, backward, fast, slow

• Advanced searching (to the one second accuracy)

• Smart Playback function

• Records playback from max. 8 channels in the same time

Network interface:

1 xRJ-4510/100 Base-TX

Network functions:

Full support via network, Remote records copying, Web-Server built-in

Network protocols:

HTTP, HTTPS,TCP/IP,IPv4/IPv6, UPnP, SNMP,UDP, NTP, DHCP, DNS, SMTP, IP Filter, DDNS, IP Search,P2P, Auto Register

ONVIF:

22.12

Default IP address:

192.168.1.108

Default admin user / password:

admin / -
The administrator password should be set at the first start

Mobile phones support:

Port no.: 37777 or access by a cloud (P2P)

• Android: Free applicationDMSS

• iOS (iPhone): Free applicationDMSS

  See how to configure the P2P function in Dahua recorders and how to enable the mobile application

Web browser access ports:

80, 37777

PC client access ports:

37777

Mobile client access ports:

37777

RTSP URL:

• rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream

• rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Sub stream

USB:

2pcsUSB 2.0

Serial ports:

Alarm inputs / outputs:

PTZ control:

IP Speed Dome Cameras

Motion Detection:

Intelligent image analysis:

Main features:

• SMD PLUS - searching for an object classified as: human, motor vehicle

• Filtering of false alarms based on the recognition of persons and vehicles

• video tampering


  Functions implemented in cooperation between the recorder and cameras that support these functions :

• Advanced peripheral protection functions: intrusion, crossing line with separate rules for vehicles and pedestrians

Mouse support:

IR remote controller in the set:

Switch PoE:

Power supply:

12VDC/ 1.5A (power adapter included)

Power consumption:

max. 10W (without HDD)

Operation temp:

-10°C ... 55°C

Weight:

0.41kg

Dimensions:

206 x 205 x 46mm

Supported languages:

Polish, English

Manufacturer / Brand:

DAHUA

Guarantee:

3 years
