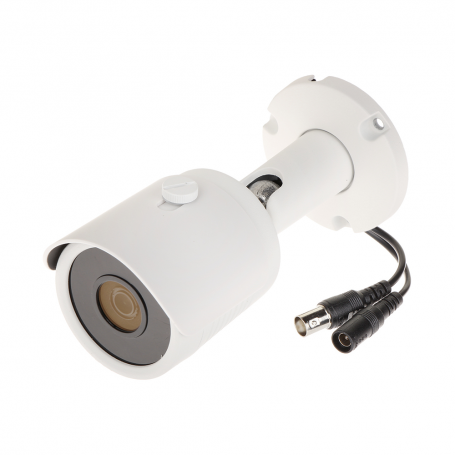

APTI-H50C2-28W 2Mpx 5Mpx 2.8 mm
Megapixel camera with 1/2.7" CMOS sensor and AHD / HD-CVI / HD-TVI.
The AHD / HD-CVI / HD-TVI interface allows to transmission of analog video signal via coaxial cable in max. 5 Mpx resolution. During transmission there are no delays and is maintained the original, high quality image.
In the case of video transmission using a twisted pair cable and matching transformers (balun), be aware of the possibility of signal reflections and interfering signals.
Attention!The camera is factory set to the resolution 2 Mpx (1080p).
local_shipping FREE shipping on orders over 90.00 € and up to 2.0 Kgr. Details
Standard: | AHD,HD-CVI,HD-TVI |
Sensor: | 1/2.7" Progressive Scan CMOS |
Matrix size: | 5Mpx |
Resolution: |
|
Lens: | 2.8mm |
View angle: |
|
Range of IR illumination: | 25m |
IR illuminator power adjustment: | Automatic |
Video output: | 1Vpp75Ω,AHD/HD-CVI/HD-TVI- selectable by switch |
OSD menu: | |
Main features: |
|
Power supply: | 12VDC/ 400mA |
Power consumption: | ≤ 4.8W |
Housing: | Compact - Aluminum |
Color: | White |
"Index of Protection": | IP66 |
Operation temp: | -20°C ... 60°C |
Weight: | 0.3kg |
Dimensions: | 157 x 66 x 68mm |
Supported languages: | English |
Manufacturer / Brand: | APTI |
Guarantee: | 2 years |
