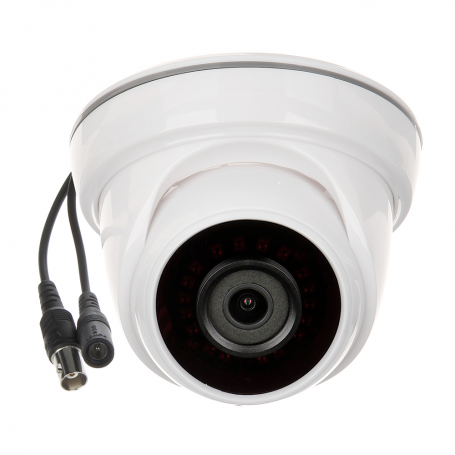

APTI-H50PV2-28W 2Mpx 5Mpx 2.8 mm
Megapixel camera with 1/2.9" CMOS sensor and AHD / HD-CVI / HD-TVI.
The AHD / HD-CVI / HD-TVI interface allows to transmission of analog video signal via coaxial cable in max. 5 Mpx resolution. It enables the transmission of HD resolution images for even 500 m distance with keeping the low costs of the installation. During transmission there are no delays and is maintained the original, high quality image.
In the case of video transmission using a twisted pair cable and matching transformers (balun), be aware of the possibility of signal reflections and interfering signals.
Attention! The camera is factory set to the resolution 2 Mpx (1080p).
local_shipping FREE shipping on orders over 90.00 € and up to 2.0 Kgr. Details
Standard: | AHD,HD-CVI,HD-TVI |
Sensor: | 1/2.7" Progressive Scan CMOS |
Matrix size: | 5Mpx |
Resolution: |
|
Range of IR illumination: | 20m |
IR illuminator power adjustment: | Automatic |
Lens: | 2.8mm |
View angle: |
|
Video output: | 1Vpp75Ω,AHD,HD-CVI,HD-TVI- selectable by switch |
Main features: |
|
Power supply: | 12VDC/ 300mA |
Power consumption: | ≤ 3.6W |
OSD menu: | OSD menu available via recorder |
Housing: | Dome - Plastic |
Color: | White |
"Index of Protection": | |
Vandal-proof: | |
Operation temp: | -20°C ... 60°C |
Weight: | 0.15kg |
Dimensions: | Ø 99 x 81mm |
Manufacturer / Brand: | APTI |
Guarantee: | 2 years |
