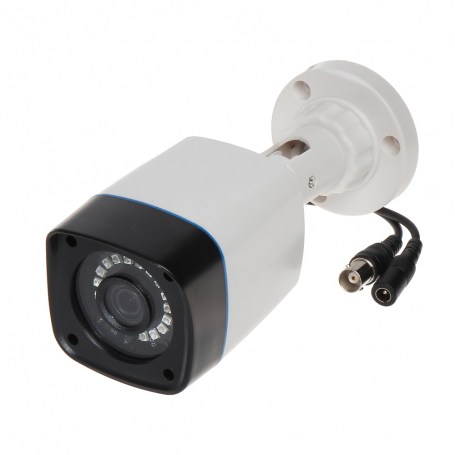

AHD-1LC2-36W - 720p 3.6 mm
Megapixel camera with 1/4" OmniVision OV9732 CMOS sensor and AHD (Analog High Definition).
The AHD interface allows to transmission of analog, composite video signal via coaxial cable. It enables the transmission of HD resolution images for even 500 m distance with keeping the low costs of the installation. During transmission there are no delays and is maintained the original, high quality image.
Camera is according to IP66 Index of Protection norm.
local_shipping FREE shipping on orders over 90.00 € and up to 2.0 Kgr. Details
Standard: | AHD |
Sensor: | 1/4" OmniVision OV9732 CMOS |
Digital Image Processor: | HTC960 |
Matrix size: | 1Mpx |
Resolution: | 1280 x 720 -720p@AHD |
Video output: | AHD- BNC socket |
OSD menu: | |
Lens: | 3.6mm, 2.0Mpx |
View angle: |
|
S/N ratio: | > 50dB |
Range of IR illumination: | 20m |
IR illuminator power adjustment: | Automatic |
Main features: |
|
Power supply: | 12VDC/ 310mA |
Housing: | Compact, Plastic |
Color: | White |
"Index of Protection": | IP66 |
Operation temp: | -10°C ... 50°C |
Weight: | 0.18kg |
Dimensions: | 161 x 62 x 62mm |
Country of origin: | China |
Manufacturer / Brand: | APTI |
Guarantee: | 2 years |
