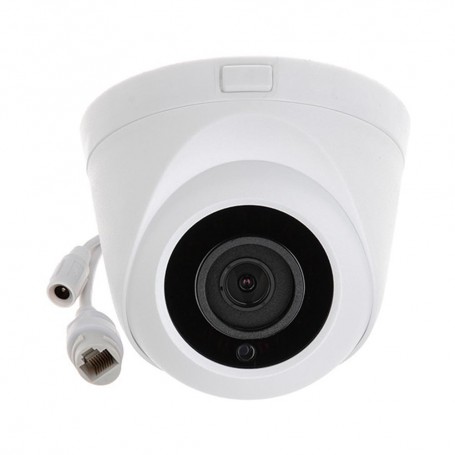

IP ΚΑΜΕΡΑ 201F2-28WP - 3Mpx 2.8 mm
zoom_out_map
chevron_left chevron_right

IP ΚΑΜΕΡΑ 201F2-28WP - 3Mpx 2.8 mm

IP camera with efficient H.264 / H.265 image compression algorithm for clear and smooth video streaming at maximal resolution of 3 MPx.

The range of IR illumination according to the manufacturer data, depends on outer conditions (visibility - air transparency, environment, wall colors ie. scene reflectance).

PoE powering possibility, compatible with the 802.3af standard makes the device more universal and easier to install.

€53.00 (tax incl.) €42.74 (tax excl.)
Tax included

local_shipping FREE shipping on orders over 90.00  and up to 2.0 Kgr. Details

Security policy (edit with Customer reassurance module)
Delivery policy (edit with Customer reassurance module)
Return policy (edit with Customer reassurance module)

Standard:

TCP/IP

Sensor:

1/2.7" CMOS

Matrix size:

3Mpx

Resolution:

2304 x 1296 - 3Mpx,
1920 x 1080 -1080p,
1280 x 720 -720p

Lens:

2.8mm, 3.0Mpx

View angle:

  • 95° (manufacturer data)

  • 105° (our tests result)

Range of IR illumination:

20m

Image compression method:

H.265+ /H.265/ H.264+ /H.264/MJPEG

Alarm inputs / outputs:

Bitrate:

64 ... 12000kbps

Main stream frame rate:

max. 20fps@ 3Mpx

Network interface:

10/100 Base-T(RJ-45)

Network protocols:

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS,RTP,RTSP, RTCP, NTP, SMTP

WEB Server:

Built-in - port 80

Max. number of on-line users:

10

ONVIF:

2.4

Main features:

  • D-WDR - Wide Dynamic Range

  • 3D-DNR - Digital Noise Reduction

  • F-DNR (Defog) - Reduction of image noise caused by precipitation

  • ROI - improve the quality of selected parts of image

  • ICR - Movable InfraRed filter

  • Flicker Control - The technology eliminates the tiring eyes flickering image effect

  • Possibility to change the resolution, quality and bit rate

  • BLC - Back Light Compensation

  • Motion Detection

  • Privacy zones

  • Day/night mode

  • Auto White Balance

  • Mirror - Mirror image

  • Sharpness - sharper image outlines

Mobile phones support:

Port no.: 80 or access by a cloud (P2P)

Default IP address:

192.168.1.168

Default admin user / password:

admin / admin

Web browser access ports:

80

PC client access ports:

80

Mobile client access ports:

80

Port ONVIF:

80

RTSP URL:

rtsp://user:password@ip_address:80/0 - Main stream
rtsp://user:password@ip_address:80/1 - Sub stream

Power supply:

  • PoE (802.3af),

  • 12VDC/ 340mA

Power consumption:

4.1W

Housing:

Dome - Metal

Color:

White

"Index of Protection":

IP66

Operation temp:

-20°C ... 60°C

Weight:

0.3kg

Dimensions:

Ø 93 x 74mm

Supported languages:

Polish, English, Bulgarian, Czech, French, Spanish, Dutch, German, Portuguese, Russian, Turkish, Italian

Manufacturer / Brand:

APTI

Guarantee:

2 years
